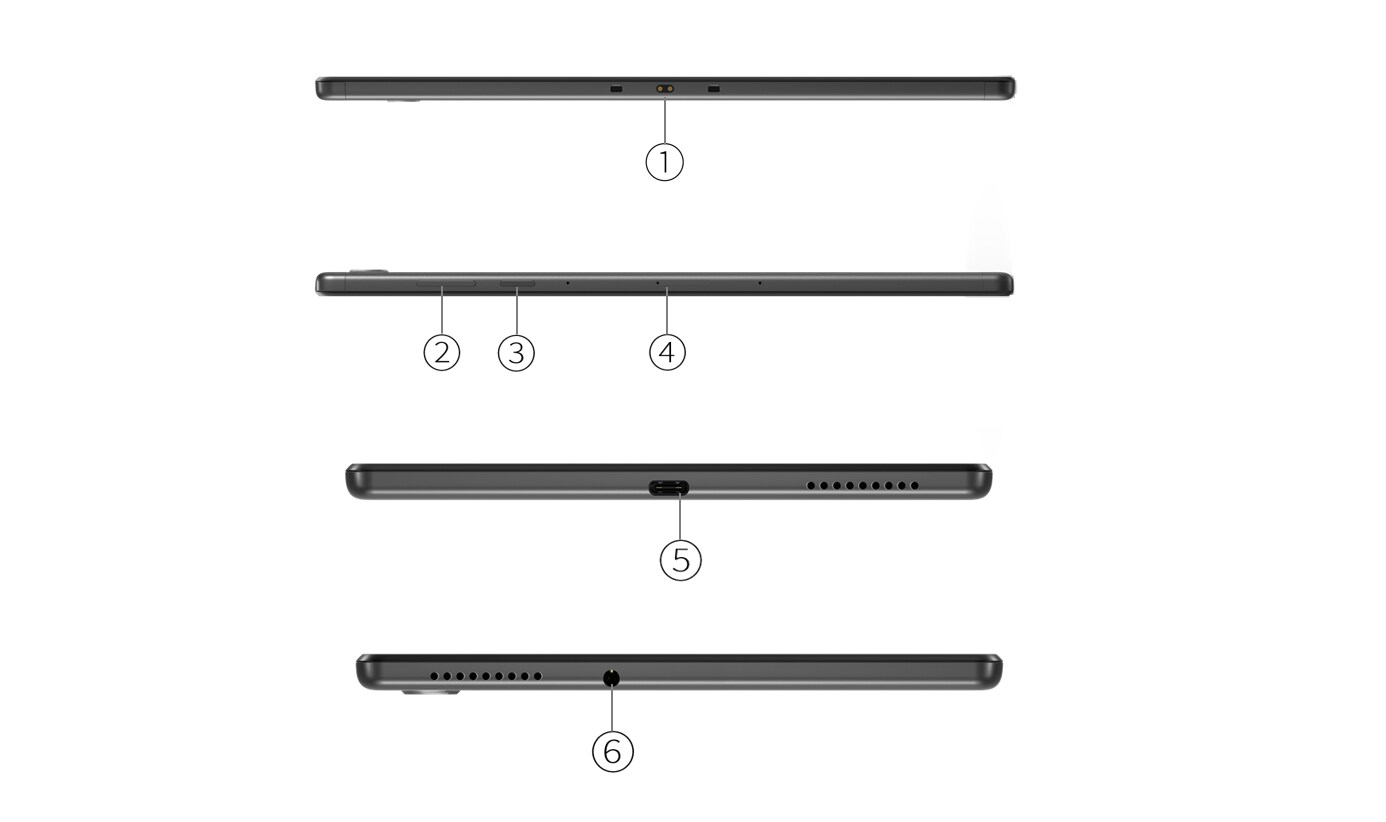

1.
Pogo pin connector (2-point)
|
4.
Card slot
|
|
2.
Volume button
|
5.
USB-C 2.0
|
|
3.
Power button
|
6.
Headphone / microphone combo jack (3.5mm)
|
Notes:
- Card slot is for microSD card (WLAN model) or nano-SIM + microSD card (WWAN model)
- Pogo pin connector is used to connect the tablet to other Lenovo accessories. The accessories availability may vary by country/region.
Performance
Processor
Processor
| Processor Name | Cores | Max Frequency | Memory Support | Processor Graphics |
| MediaTek Helio P22T | ARM Cortex A53 Octa-core | [email protected] / [email protected] | LPDDR4X | IMG PowerVR GE8320 GPU |
Operating System
Notes:
- Lenovo® tablets typically receive at least 1 Android OS upgrade cycle. May vary depending on models, countries, regions, retailers or operators. For latest software upgrade information, please visit Android Upgrade Matrix.
Graphics
Chipset
Memory
Max Memory
- 2GB soldered memory, not upgradable
- 3GB soldered memory, not upgradable
- 4GB soldered memory, not upgradable
Storage
Storage Support
- 32GB eMCP4x on systemboard
- 64GB eMCP4x on systemboard
- MicroSD card, supports FAT32 file up to 256GB, exFAT file up to 1TB
Removable Storage
Multi-Media
Notes:
- For LTE voice call models, cellular data plan required. Speeds are based on theoretical throughput and vary based on site conditions and carrier. For details on cellular support, contact your carrier for details.
Sensor
Battery
Max Battery Life[1]
Standby time: 700 hr Online video playback time: 8 hr Talk time: 8 hr (WWAN model) Browsing time: 10hr
Notes:
- All battery life claims are approximate and based on internal testing under optimal laboratory and network conditions. Actual battery performance will vary and depend on numerous factors including product configuration and usage, software, operating conditions, wireless functionality, power management settings, screen brightness and other factors. The maximum capacity of the battery will naturally decrease with time and usage.
Power Adapter
Design
Display
Display[1]
| Size | Resolution | Touch | Type | Brightness | Surface | Aspect Ratio | Contrast Ratio | Color Gamut | Viewing Angle | Key Features |
| 10.1″ | HD (1280×800) | Multi-touch | IPS | 400 nits | Anti-fingerprint | – | – | 60% NTSC | – | – |
Notes:
- California Electronic Waste Recycling Fee In California, per state law, Lenovo charges an electronic waste recycling fee on this covered device at the time of sale of the product. For more information, go to https://www.calrecycle.ca.gov/Electronics/Consumer
Input Device
Mechanical
Connectivity
Network
Cellular Bands[1]
GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5(B6/B19)/B8 FDD LTE: B1/B2/B3/B4/B5(B19)/B7/B8/B20/B28(a+b) TDD LTE: B38/B40/B41
Notes:
- B41 is only available for X306V model.
Ports[1]
Standard Ports[2]
- 1x USB-C 2.0 (support data transfer, OTG, and Power Delivery)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Pogo pin connector (2-point)
Notes:
- The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed. USB 2.0: 480 Mbit/s; USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s; USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s; USB 3.2 Gen 2×2 (SuperSpeed USB 20Gbps): 20 Gbit/s; Thunderbolt™ 3: 40 Gbit/s; FireWire 400: 400 Mbit/s; FireWire 800: 800 Mbit/s
- Pogo pin connector is used to connect the tablet to other Lenovo accessories. The accessories availability may vary by country/region.
Service
Warranty
Base Warranty**[1]
- 1-year carry-in service
- 1-year mail-in service
- 1-year depot service
- 2-year (1-yr battery) carry-in service
- 2-year (1-yr battery) mail-in service
- 2-year (1-yr battery) depot service
- 2-year (2-yr battery) carry-in service
- 2-year (2-yr battery) depot or carry-in service
- 3-year (1-yr battery) depot service
- No base warranty
Notes:
- More information of warranty policy, please access https://pcsupport.lenovo.com/warranty
